Pantographs

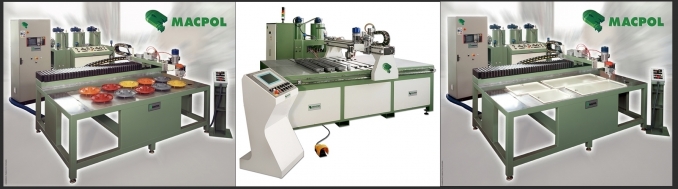

Pantograph with three axes x, y & z
![Pantograph with three axes x, y & z - Macpol Srl](/2/images/678_0_3949692_111729.jpg)
Extremely versatile machine, to cast in a controlled way, pu or hot-melt glue on several type of products.
The machine is used in different areas, such as filtration industry: air, oil and hydraulic; wood industry : windows gluing; and lighting industry: to apply pu gaskets on ceiling lamps and switchboards.
Pantograph with two axes X & Y
![Pantograph with two axes X & Y - Macpol Srl](/2/images/280_0_3947009_111729.jpg)
Machine used to apply polyurethane or release agent on moulds.
Features
![Features - Macpol Srl](/2/images/280_0_3946958_111729.jpg)
Frame:
in steel, with supports with linear sliding guides.
Commands/controls for axes x & y:
linear guides in hardened steel, at re-circulation ball screw for axes sliding.
Steel helicoidal rack and hardened pinion for the axes movement. two brushless engines for pantograph movement.
X axis stroke: 850 mm,
Y axis stroke: 600 mm,
X & Y axes speed: from 0 to 40 mt/min.
